IHG type stainless steel pump,acid alkali pump

CONTACT US:86-020-89230513
EMAIL:3105442310@qq.com
产品介绍销售记录


  Products Description:

Model IHG type stainless steel pump series parameters:

Capacity: 3.3-460 m3 / h

Head: 3.4-132 meters
Power: 0.55 KW to 110 KW
Working voltage: 220V or 380V

Liquid Temperature: ≤ 150 ℃
The motor speed: 2900 r/min
Material: pump casing, back cover, impeller and the pump shaft are made of 304/ 316/316L stainless steel

Performance: corrosion resistant, acidresistant, alkali resistant

Delivery: chemical corrosive acid alkali liquid, chemical sewage and etc


Application:

1.  Environmental protection, chemical, pharmaceutical

2.  Electroplating, deeing, sewage process

3.  petroleum chemical industry,pharmaceutical, fertilizers

4.  Acid, alkali liquid, Organic solvent and inorganic solvents liquid

5.  electroplating factory, papermaking,electroplating factory and etc


Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

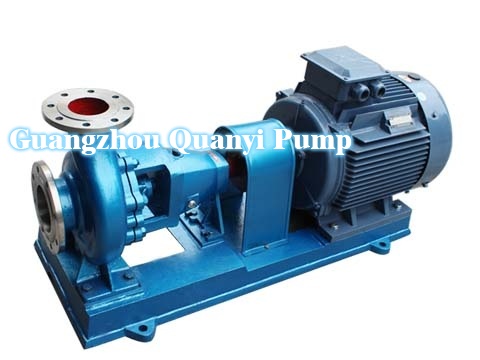

 IHG type stainless steel pump Product Picture:


  Product Performance Date:


IHG type stainless steel pump (2900rpm)
Model Capacity(m³ /h) Head(m) Power(KW) Speed(r/min)
IHG50-32-125
 7.5
12.5
15.0 		23
20
18 		2.2 2900
IHG50-32-125A 6.8
11.3
13.6 		18.8
16.4
14.7 		1.5 2900
IHG50-32-160 7.5
12.5
15.0
 34.5
32
30 		3 2900
IHG50-32-160A 6.8
11.3
13.6 		28.5
26.4
24.8 		3 2900
IHG50-32-200 7.5
12.5
15.0 		51.8
50
48 		5.5 2900
IHG50-32-200A 6.8
11.3
13.6 		42.7
41
39.5 		4 2900
IHG50-32-200B 6.5
10.9
13.1 		39.4
38
36.5 		4 2900
IHG50-32-250 7.5
12.5
15.0 		82
80
78.5 		11 2900
IHG50-32-250A 7
11.7
14 		71.9
70
68.8 		11 2900
IHG50-32-250B 6.6
11
13.2 		63.6
62
60.9 		7.5 2900
IHG65-50-125 15
25
30 		21.3
20
18.6 		3 2900
IHG65-50-125A 13.6
22.7
27.3 		17.6
16.5
15.4 		2.2 2900
IHG65-50-160 15
25
30 		34.2
32
30 		5.5 2900
IHG65-50-160A 13.6
22.7
27.3 		28.4
26.5
24.8 		4 2900
IHG65-40-200 15
25
30 		53.2
50
47.6 		11 2900
IHG65-40-200A 13.6
22.7
27.3 		43.9
41
39.3
7.5 		2900
IHG65-40-200B 13
21.7
26 		40.1
37.7
35.8 		5.5 2900
IHG65-40-250 15
25
30 		81.2
80
78.4 		15 2900
IHG65-40-250A 14
23.4
28 		71
74.8
68.6 		15 2900
IHG65-40-250B 13.2
22
26.4 		62.8
61.8
53 		11 2900
IHG65-40-315 15
25
30 		126.8
125
124 		30 2900
IHG65-40-315A 14
23.4
28 		111.2
109.5
108.8 		30 2900
IHG65-40-315B 13.2
22
26.4 		98
96.5
95.9 		22 2900
IHG80-65-125 30
50
60 		23.2
20
17.6 		5.5 2900
IHG80-65-125A 27.2
45.3
54.4 		19.1
16.5
14.5 		4 2900
IHG80-65-160 30
50
60 		36
32
28.4 		11 2900
IHG80-65-160A 27.2
45.4
54.4 		29.7
26.4
23.4 		7.5 2900
IHG80-50-200 30
50
60 		55.2
50
45.2 		15 2900
IHG80-50-200A 27.2
45.3
54.4 		45.4
41
37.2 		11 2900


IHG type stainless steel pump (2900rpm)
Model Capacity(m³ /h) Head(m) Power(KW) Speed(r/min)
IHG80-50-200B 30
50
60
 41.8
37.8
34.2 		11 2900
IHG80-50-250 27.2
45.3
54.4 		84
80
75 		30 2900
IHG80-50-250A 26.1
43.5
52.2 		75.8
72.2
67.7 		22 2900
IHG80-50-250B 30
50
60
 65
61.9
58.1
18.5 		2900
IHG80-50-315 30
50
60 		128
125
123 		45 2900
IHG80-50-315A 28.5
47.5
57 		115.5
112.8
111 		37 2900
IHG80-50-315B 26.4
44
52.8 		99.1
96.8
95.2 		30 2900
IHG100-80-125 60
100
120 		23.7
20
16.3 		11 2900
IHG100-80-125A 55
91.8
109 		19.4
16.8
13.7 		7.5 2900
IHG100-80-160 60
100
120 		37
32
28 		15 2900
IHG100-80-160A 54.6
91
109.2 		30.6
26.5
23.2 		15 2900
IHG100-65-200 60
100
120 		56
50
44 		30 2900
IHG100-65-200A 54.6
91
109.2 		46.5
41.5
36.6 		18.5 2900
IHG100-65-200B 51
85
102 		40.5
36.1
31.8 		15 2900
IHG100-65-250 60
100
120 		88
80
74 		45 2900
IHG100-65-250A 56.1
93.5
112.2 		77
70
64.7 		37 2900
IHG100-65-250B 52.7
87.8
105.4 		67.9
61.7
57 		30 2900
IHG100-65-315 60
100
120 		132
125
119 		75 2900
IHG100-65-315A 56.1
93.5
112.2 		115.5
109
104 		75 2900
IHG100-65-315B 52.7
88
105.4 		102
97
92 		55 2900
IHG125-100-200 120
200
240 		61
50
41 		45 2900
IHG125-100-200A 109.1
182
218.2 		50.5
41.4
34 		37 2900
IHG125-100-200B 102
170
204 		44.1
36.1
29.6 		30 2900
IHG125-100-250 120
200
240 		90
80
73 		75 2900
IHG125-100-250A 112
186.5
224 		78
69.5
63.5 		75 2900
IHG125-100-250B 105.5
175.5
211 		69
61.5
56 		55
 2900
IHG125-100-315 120
200
240 		132.5
125
120 		110 2900
IHG125-100-315A 110.4
184
220.8 		112.1
105.8
101.6 		90
 2900
IHG125-100-315B 102
170
204 		95.7
90.3
86.7 		75 2900


IHG type stainless steel pump (1450rpm)
Model Capacity(m³ /h) Head(m) Power(KW) Speed(r/min)
IHG50-32-125 3.75
6.3
7.5 		5.57
5.0
4.5 		0.55 1450
IHG50-32-125A 3.4
5.7
6.8 		4.7
4.1
3.7 		0.55 1450
IHG50-32-160 3.75
6.3
7.5 		8.6
8.0
7.5 		0.55 1450
IHG50-32-160A 3.4
5.7
6.8 		7.1
6.6
6.2 		0.55 1450
IHG50-32-200 3.75
6.3
7.5 		12.9
12.5
12 		1.1 1450
IHG50-32-200A 3.4
5.7
6.8 		10.6
10.3
9.9 		0.75 1450
IHG50-32-250 3.75
6.3
7.5 		20.5
20
19.6 		2.2 1450
IHG50-32-250A 3.51
5.9
7.02 		18
17.5
17.2 		1.5 1450
IHG50-32-250B 3.3
5.5
6.6 		15.9
15.5
15.2 		1.1 1450
IHG65-50-125 7.5
12.5
15 		5.4
5
4.5 		0.55 1450
IHG65-50-125A 6.8
11.3
13.6 		4.5
4.1
3.7 		0.55 1450
IHG65-50-160 7.5
12.5
15 		8.55
8
7.5 		0.75 1450
IHG65-50-160A 6.8
11.3
13.6 		7.09
6.6
6.2 		0.55 1450
IHG65-40-200 7.5
12.5
15 		13.3
12.5
11.9 		1.5 1450
IHG65-40-200A 6.8
11.3
13.6 		11
10.3
9.8 		1.1 1450
IHG65-40-250 7.5
12.5
15 		20.3
20
19.6 		3 1450
IHG65-40-250A 7.0
11.7
14.0 		17.8
17.5
17.2 		2.2 1450
IHG65-40-250B 6.6
11
13.2 		15.7
15.5
13.3 		1.5 1450
IHG65-40-315 7.5
12.5
15.0 		32.4
35
31.7 		5.5 1450
IHG65-40-315A 7.0
11.7
14.0 		28.4
28.0
27.8 		4 1450
IHG65-40-315B
 6.6
11
13.2 		24.5
24.1
23.9 		3 1450
IHG80-65-125 15
25
30 		5.8
5.0
4.4 		1.75 1450
IHG80-65-125A 13.6
22.6
27.2 		4.8
4.1
3.6 		0.55 1450
IHG80-65-160 15
25
30 		9
8
7.2 		1.5 1450
IHG80-65-160A 13.6
22.7
27.2 		7.4
6.6
5.9 		1.1 1450
IHG80-50-200 15
25
30 		13.5
12.5
11.5 		2.2 1450
IHG80-50-200A 13.6
22.7
27.2 		11.1
10.3
9.5 		2.2 1450
IHG80-50-200B 13.1
21.8
26.1 		10.5
9.45
8.55 		1.5 1450
IHG80-50-250 15
25
30 		21
20
18.8 		5.5 1450


IHG type stainless steel pump (1450rpm)
Model Capacity(m³ /h) Head(m) Power(KW) Speed(r/min)
IHG80-50-250A 14.3
23.8
28.5 		19
18.1
16.9 		3 1450
IHG80-50-250B 13.2
22
26.4 		16.3
15.5
14.5 		3 1450
IHG80-50-315 15
25
30
 32.5
32
31.5 		7.5 1450
IHG80-50-315A 14.3
23.8
28.5 		28.9
28.2
27.8 		5.5 1450
IHG80-50-315B 13.2
22
26.4 		24.8
24.2
23.8 		4 1450
IHG100-80-125 30
50
60 		5.9
5
4.1 		1.5 1450
IHG100-80-125A 27.5
45.9
54.5 		4.8
4.2
3.4 		1.1 1450
IHG100-80-160 30
50
60 		9.25
8
7 		2.2 1450
IHG100-80-160A 27.3
45.5
54.6 		7.66
6.6
5.8 		2.2 1450
IHG100-65-200 30
50
60 		14
12.5
11 		4
 1450
IHG100-65-200A 27.3
45.5
54.6 		11.6
10.3
9.1 		3 1450
IHG100-65-200B 25.5
42.3
51 		10.1
9
7.95 		2.2 1450
IHG100-65-250 30
50
60 		22
20
18.5 		5.5 1450
IHG100-65-250A 28
45.5
56 		19.2
17.4
6.2 		5.5 1450
IHG100-65-250B 26.4
43.9
52.7 		16.9
15.4
14.25 		4 1450
IHG100-65-315 30
50
60 		33.5
32
30.5 		11
 1450
IHG100-65-315A 28
46.5
56 		29.3
28
26.7 		11 1450
IHG100-65-315B 26.4
44
52.7 		25.5
24.3
23 		7.5
 1450
IHG125-100-200 60
100
120 		15.25
12.5
10.25 		7.5 1450
IHG125-100-200A 54.7
91
109.4 		12.6
10.3
8.5 		5.5 1450
IHG125-100-200B 51
85
102 		11
9.02
7.4 		4 1450
IHG125-100-250 60
100
120 		22.5
20
18.25 		11 1450
IHG125-100-250A 56
93
112 		19.5
17.4
15.9 		11 1450
IHG125-100-250B 52.8
87.8
105.5 		17.25
15.4
14 		7.5 1450
IHG125-100-315 60
100
120 		36.5
32
30.5 		18.5 1450
IHG125-100-315A 55.2
92
110.4 		28
26.5
25.4 		15 1450
IHG125-100-315B 51
85
102 		23.9
22.6
21.7 		11 1450
IHG125-100-400 60
100
120
 52
50
48.5 		30
 1450
IHG125-100-400A 55.2
92
110.4 		44
42.3
41 		30 1450


IHG type stainless steel pump (1450rpm)
Model Capacity(m³ /h) Head(m) Power(KW) Speed(r/min)
IHG125-100-400B 51
85
102 		37.6
36.1
35 		22
 1450
IHG150-125-250 120
200
240 		24.8
20
15 		18.5 1450
IHG150-125-250A 109.1
182
218.2 		20.5
16.5
12.4 		15 1450
IHG150-125-250B 102
170
204 		17.9
14.5
10.8 		11 1450
IHG150-125-315 120
200
240 		36.3
32
28.5 		30 1450
IHG150-125-315A 109.1
182
218.2 		30
25.5
23.5 		22 1450
IHG150-125-315B 102
170
204 		26.2
23.1
20.6 		18.5 1450
IHG150-125-400 120
200
240 		57.5
50
44 		55 1450
IHG150-125-400A 109.1
182
218.2 		47.5
41
36.5 		37 1450
IHG150-125-400B 102
170
204 		41.5
36.1
31.8 		30 1450
IHG200-150-250 240
400
460 		23
20
18 		45 1450
IHG200-150-250A 218.2
363
418 		19
16.6
14.9 		37 1450
IHG200-150-250B 204
340
391 		16.6
14.5
13 		30 1450
IHG200-150-315 240
400
460 		35.6
32
29.4 		55 1450
IHG200-150-315A 218.2
363
418 		29.4
25.5
24.3 		45 1450
IHG200-150-315B 204
340
391 		25.7
23.1
21.2 		37 1450
IHG200-150-400 240
400
460 		55.8
50
47 		90 1450
IHG200-150-400A 218.2
363
418 		46
41
38.8 		75 1450
IHG200-150-400B 204
340
391 		40.3
36.1
34 		55 1450
IHG200-150-400C 192
320
368 		35.7
32
30.1 		45 1450
