Products Description:
Model WQG type stainless steel submersible swage pump series parameters:
Material: foundry iron
Capacity: 6-4000 m3 / h
Head: 7-40 meters
Power: 0.55 KW to 400KW
caliber: ≥25mm
Speed: 2900 r/min or 1450 r/min
Working voltage: 220V or 380V, and the voltage can be customized
Delivery: water,sewage, waste water, well water
Application:
1. Municipal construction, industrial, hospitals dirty water
2. Hotels, construction site waste water
3. Sewage lifting, sewage and sewage discharge
4. Well pumping, garden well, farmland irrigation, garden irrigation
5. Industrial sewage, waste water pump station sewage discharge
6. Breeding tank sewage
7. Dirty water lift
Attention: Some chemical raw materials was limited by the temperature and the concentration, if there's any question, can inquiry customer service.

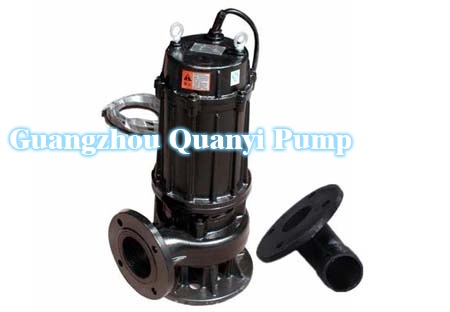

WQG type submersible swage pump product picture:

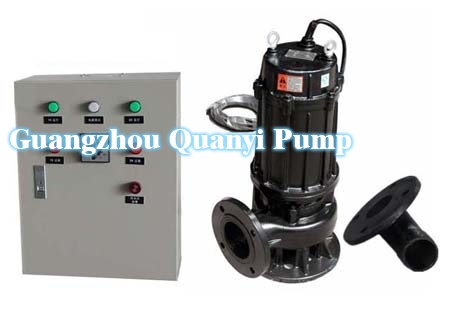

The following are optional devices: Electric control cabinet

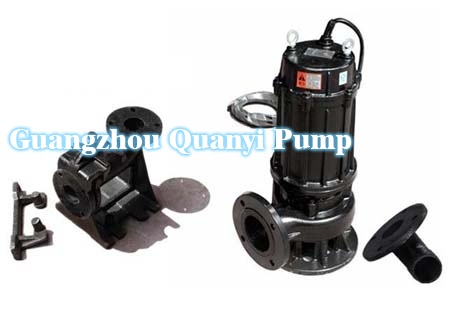

Automatic coupling device:
Product Performance Date:
| WQG type stainless steel submersible swage pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | caliber(mm) |
| WQG 7-7-0.55 | 7 | 7 | 0.55 | 50 |
| WQG 9-22-2.2 | 9 | 22 | 2.2 | 50 |
| WQG 10-10-0.75 | 10 | 10 | 0.75 | 50 |
| WQG 10-15-1.1 | 10 | 15 | 1.1 | 50 |
| WQG 12-25-3 | 12 | 25 | 3 | 50 |
| WQG 13-10-1.1 | 13 | 10 | 1.1 | 50 |
| WQG 15-10-1.1 | 15 | 10 | 1.1 | 50 |
| WQG 15-15-1.5 | 15 | 15 | 1.5 | 50 |
| WQG 15-20-2.2 | 15 | 20 | 2.2 | 50 |
| WQG 15-30-4 | 15 | 30 | 4 | 50 |
| WQG 18-10-1.5 | 18 | 10 | 1.5 | 50 |
| WQG 20-15-2.2 | 20 | 15 | 2.2 | 50 |
| WQG 20-40-7.5 | 20 | 40 | 7.5 | 50 |
| WQG 25-8-1.5 |
25 |
8 | 1.5 | 50 |
| WQG 25-10-2.2 | 25 | 10 | 2.2 | 50 |
| WQG 25-15-2.2 | 25 | 15 | 2.2 | 50 |
| WQG 24-20-4 | 24 | 20 | 4 | 50 |
| WQG 25-22-4 |
25 |
22 | 4 | 50 |
| WQG 25-30-5.5 | 25 | 30 | 5.5 | 50 |
| WQG 27-13-2.2 | 27 | 13 | 2.2 | 50 |
| WQG 30-6-1.5 | 30 | 6 | 1.5 | 50 |
| WQG 30-20-4 | 30 | 20 | 4 | 50 |
| WQG 30-25-5.5 | 30 | 25 | 5.5 | 50 |
| WQG type stainless steel submersible swage pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | caliber(mm) |
| WQG 30-10-2.2 | 30 | 10 | 2.2 | 80 |
| WQG 30-14-3 | 30 | 14 | 3 | 80 |
| WQG 35-7-2.2 | 35 | 7 | 2.2 | 80 |
| WQG 37-10-3 | 37 | 10 | 3 | 80 |
| WQG 42-9-2.2 | 42 | 9 | 2.2 | 80 |
| WQG 42-12-3 | 42 | 12 | 3 | 80 |
| WQG 40-15-4 | 40 | 15 | 4 | 80 |
| WQG 40-25-7.5 | 40 | 25 | 7.5 | 80 |
| WQG 50-10-3 | 50 | 10 | 3 | 80 |
| WQG 50-22-7.5 | 50 | 22 | 7.5 | 80 |
| WQG 60-13-4 | 60 | 13 | 4 | 80 |
| WQG type stainless steel submersible swage pump | ||||
| Model | Capacity(m³ /h) | Head(m) | Power(KW) | caliber(mm) |
| WQG 45-15-5.5 | 45 | 15 | 5.5 | 100 |
| WQG 50-17-5.5 | 50 | 17 | 5.5 | 100 |
| WQG 65-15-5.5 | 65 | 15 | 5.5 | 100 |
| WQG 70-7-3 | 70 | 7 | 3 | 100 |
| WQG 70-10-4 | 70 | 10 | 4 | 100 |
| WQG 70-15-7.5 | 70 | 15 | 7.5 | 100 |
| WQG 80-13-7.5 | 80 | 13 | 7.5 | 100 |
| WQG 90-6-4 | 90 | 6 | 4 | 100 |
| WQG 100-7-4 | 100 | 7 | 4 | 100 |
| WQG 100-10-5.5 | 100 | 10 | 5.5 | 100 |
| WQG 100-15-7.5 | 100 | 15 | 7.5 | 100 |
| WQG 140-7-5.5 | 140 | 7 | 5.5 | 150 |
| WQG 145-10-7.5 | 145 | 10 | 7.5 | 150 |
| WQG 210-7-7.5 | 210 | 7 | 7.5 | 150 |
| WQG300-10-18.5 | 300 | 10 | 18.5 | 150 |
| WQG300-18-30 | 300 | 18 | 30 |
150 |
We have more models for your choice, if the models above do not meet your requirment, you can ask for more information, the submerible pump can be customized.
